We offer a wide selection of Solar control & louvers for doors and windows, each designed to enhance your space.

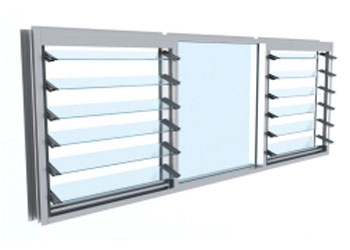

The Air-Flo® Plus 125mm Louvre system is purposely designed to provide a total solution for all residential and commercial louvre window applications, including fixed lights and hinged doors.
Louvre gallery options include the Breezway® or Aero Louvre gallery range providing general to advanced louvre solutions.
Both Gallery options have been tested offering performance and flexibility when combined with the Alspec® range.
The Air-Flo® Plus 125mm Louvre system includes a complete screened louvre frame offering a variety of external security and flyscreen options including the Invisi-Gard® and KidScreen® products. Now also included in the Air-Flo® Plus 125mm Louvre range is a 50mm slim line frame developed to suit narrow louvre window installations. This frame presents a neat appearance using an integrated head and sill design.
| Frame Dimensions | |
|---|---|
| Option 1 | 125 x 32mm |
| Option 2 | 50 x 19mm |
| Maximum Product Performance | |
| SLS (Pa) | 1500 |
| ULS (Pa) | 5000 |
| Water (Pa) | 300 (Aero) or 450 (Breezway) |
| Glazing Details | |
| Fixed Light Glass Single Glazed | 4 - 10.38mm |
| Fixed Light Glass Double Glazed | 18 – 25mm |
| Louvre Blades | 6mm |
| Acoustic Performance | |
| 6mm | 27Rw |
| Thermal Performance | |
| Uw range SG | 4.5 – 6.1 |
| SHGC range SG | 0.27 – 0.63 |
| Hunter Evo Flush Glazed Framing | |
| Air-Flo Plus 40mm French Door | Swan Evo 45mm Commercial Shopfront Door |
| Air-Flo Plus Framing | Torrens 45mm Commercial Shopfront Door |
Let us help you bring your vision to life with designs that blend style, functionality, and durability.
