We offer a wide selection of Sashless Double Hung Windows, each designed to enhance your space.

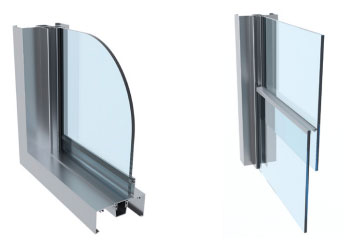

The ProVista Sashless Double Hung Window offers unobstructed views whether the window is open or closed. The two panes of glass slide smoothly and effortlessly past each other with a minimalist design.
It creates a clean and modern aesthetic feel while also providing maximum ventilation.

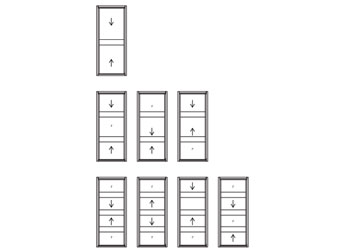

| Configuration | Frame Width | |
|---|---|---|
| 6mm Glaze | 10mm Glaze | |
| 2 Panel | 41mm | 49mm |
| 3 Panel | 59mm | 71mm |
| 4 Panel | 76mm | 93 |
| Maximum Product Performance | ||
| ULS (Pa) | 4500 | |
| Water (Pa) | 458 | |
| Maximum Recommended Sizes | ||
| Sash Height | 1800mm | |
| Sash Width | Dependant on sash weights | |
| Sash Weight | STD Pulley 25kg, WIDE Pulley 40kg | |
| Acoustic Performance | ||
| Glass Type | Rw (C; Ctr) | |
| 6.38mm Laminate | 28 (-1; -2) | |
| 10.38mm Laminate | 31 | |
| Primary Window | Secondary Window | Rw (C; Ctr) |
| Awning 6.38mm Laminate | ProVista 6.38mm Laminate | 47 (-2; -5) |
| Glazing Details | ||
| Single Glazed | 6mm & 10mm | |
| Compatible Systems | ||
| McArthur Evo Centre Pocket Framing | ||
Let us help you bring your vision to life with designs that blend style, functionality, and durability.
