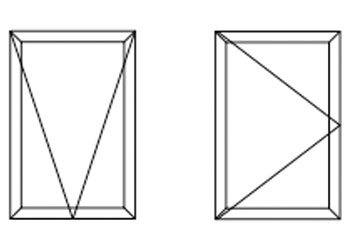

We offer a wide selection of Awning and Casement Windows, each designed to enhance your space.
Alspec’s range of awning and casement windows are ideal for suburban housing, multi-unit residential, hotels and commercial applications. The awnings and casements can integrate with a number of Alspec Commercial Framing systems by using different awning adaptors.

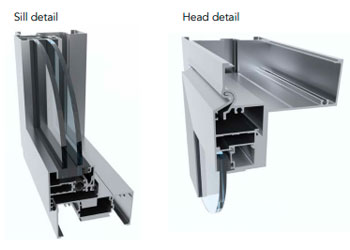

The 35mm and 50mm sashes offer the benefit of overlapping internal and external seals to achieve superior weather performance. The 443 30mm sash sits inset of the framing and can offer a flush appearance.
Various glazing options for single and double glazing are available. All awnings and casements can be used with a range of available stays and operated with chainwinders or cam handles, locking or non-locking. With the use of our chainwinder adaptor, insect and security screens can easily be added from the inside of the building.
| Frame Dimensions | |||
|---|---|---|---|
| Option 1 | Sash width 30mm | ||
| Option 2 | Sash width 35mm | ||
| Option 3 | Sash width 50mm | ||
| Maximum Recommended Sizes | 30mm | 35mm | 50mm |
| Height (mm) | 1000 | 1500 | 1800 |
| Width (mm) | 1000 | 1200 | 1200 |
| Weight | 18kg | 90kg | 90kg |
| Sash SQMs | 1.0 | 1.2 | 1.8 |
| Maximum Product Performance | 35mm | 50mm | |
| SLS (Pa) | 2300 | 2200 | |
| ULS (Pa) | 4500 | 5100 | |
| Water (Pa) | 700 | 660 | |
| Thermal Performance | 35mm | 50mm | |
| Uw range SG | 5.9 – 6.9 | 5.8 - 7.2 | |
| SHGC range SG | 0.26 – 0.53 | 0.29 - 0.51 | |
| Uw range DG | 4.2 – 4.8 | 4.3 - 5.3 | |
| SHGC range DG | 0.15 – 0.48 | 0.13 - 0.45 | |
| Acoustic Performance | 35mm | 50mm | |
| Glass Type | Rw (C; Ctr) | Rw (C; Ctr) | |
| 6.38mm Laminate | 33 (-1,-2) dB | 33 (-1,-2) dB | |
| 12.76mm Laminate | N/A | 38 (-1, -3) dB | |
| 6.76mm Lam / 13.5 Gap / 6.76mm Lam | N/A | 41 (-2, -6) dB | |
| Compatible Systems | |||
| Derwent Centre Pocket Framing | |||
| McArthur Evo Centre Pocket Framing | |||
| ecoFRAMEplus Centre Pocket Double Glazed Framing | |||
| Hunter Evo Flush Glazed Framing | |||
| EcoWall 225 Flush Glazed Framing | |||
Let us help you bring your vision to life with designs that blend style, functionality, and durability.
