We offer a wide selection of Top Hung Commercial Sliding Doors, each designed to enhance your space.
The Hawkesbury Top Hung Sliding Door from Alspec offers architects and designers unrivaled design flexibility with the freedom to achieve large expansive openings whilst also offering a weather resistant and wheelchair compliant sill.

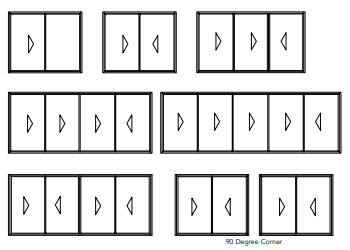

Specifying Alspec’s Hawkesbury Top Hung Sliding Door ensures the client receives a solid, durable high-performance product offering a continuous accessible path of seamless transition between internal and external floor finishes that is capable of large panel sizes up to 3000mm in height and 2500mm in width. Multi-stack configurations are available using high quality E3 hardware by Centor.
Designed and manufactured in Australia to meet the extremes of the Australian environment, the Alspec Hawkesbury Top Hung Sliding Door is the first choice amongst architects, builders, homeowners and fabricators when performance and quality matter.
| Frame Dimensions | |
|---|---|
| 2 Track | 124 x 45 mm |
| 3 Track | 186 x 45 mm |
| Maximum Product Performance | |
| SLS (Pa) | 1400 |
| ULS (Pa) | 2700 |
| Water (Pa) | 200 |
| Maximum Recommended Sizes | |
| Height | 3000mm |
| Sash Width | 2500 mm |
| Weight | 300 kg per panel |
| Acoustic Performance | |
| Glass Type | Rw (C; Ctr) |
| 6.38mm Laminate | Rw 29 |
| 6.38mm/ 12/ 6.5mm | Rw32 |
| Thermal Performance | |
| Uw range SG | 4.4 - 6.2 |
| SHGC range SG | 0.26 - 0.59 |
| Uw range DG | 3.2 - 4.0 |
| SHGC range DG | 0.25 – 0.52 |
| Glazing Details | |
| Single Glazed | 6 - 13.5mm |
| Double Glazed | 18 - 28mm |
Let us help you bring your vision to life with designs that blend style, functionality, and durability.
