We offer a wide selection of Commercial Sliding Windows, each designed to enhance your space.

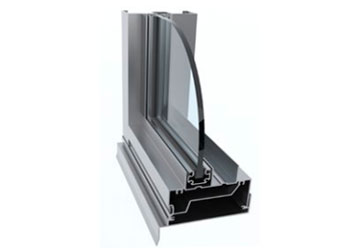

The View-Max Sliding Window offers unparalleled levels of flexibility by allowing designers and architects the choice of 76mm (Derwent) or 101.6mm (McArthur Evo) framing to cater for both the slimline applications and those of a more robust commercial design.
The View-Max Sliding Window offers the flexibility of single and double glazing options and integrates with a number of design initiatives unique to Alspec such as the proprietary locking, roller and drainage systems.
| Frame Dimensions | |
|---|---|
| Option 1 | 76 x 35mm |
| Option 2 | 101.6 x 44.5mm |
| Maximum Recommended Sizes | |
| Height | 1600mm |
| Width | 1200mm |
| Weight | 50kg |
| Maximum Product Performance | |
| SLS (Pa) | 2000 |
| ULS (Pa) | 6000 |
| Water (Pa) | 600 |
| Thermal Performance | |
| Uw range SG | 4.7 – 6.6 |
| SHGC range SG | 0.28 – 0.69 |
| Uw range DG | 3.2 – 4.4 |
| SHGC range DG | 0.16 – 0.6 |
| Acoustic Performance | |
| Glass Type | Rw (C; Ctr) |
| 6.38mm Laminate | 31 (-0,-2) |
| 10.38mm/ 12/ 6.38mm IGU | 34 (-1,-3) (10.38mm lam) |
| Glazing Details | |
| Single Glazed | 4 – 10.38mm |
| Double Glazed | 18mm |
| Compatible Systems | |
| Derwent 76mm Centre Pocket Framing | |
| McArthur Evo Centre Pocket Framing | |
| ecoFRAMEplus Centre Pocket Double Glazed Framing | |
Let us help you bring your vision to life with designs that blend style, functionality, and durability.
